SPECIFICATIONS



Brand Name: TURTLE MOTO



Hign-concerned Chemical: None

Material Type: Lithium ion LiFePO4

External Testing Certification: ce

Model Name: Motorcycle Battery under 2kg

Item Type: motorcycle battery

Battery Type: LiFePO4 Battery

Case Material: ABS

Nominal Capacity: 2~16AH

Nominal Voltage: 12V

CCA: 160~720

Charging Efficiency: 3C

Energy Efficiency: 95%

Year Self-discharge: 0.1%

Start Transient Voltage Fluctuation: 0.2-0.5V

Discharging Temperature: -25-80Centigrade

Cycle Life: More than 2000times(3-5 years)







Our high quality batteries achieve more buyers' satisfaction and trust!

About this item：

Battery Type: LiFePO4 Battery

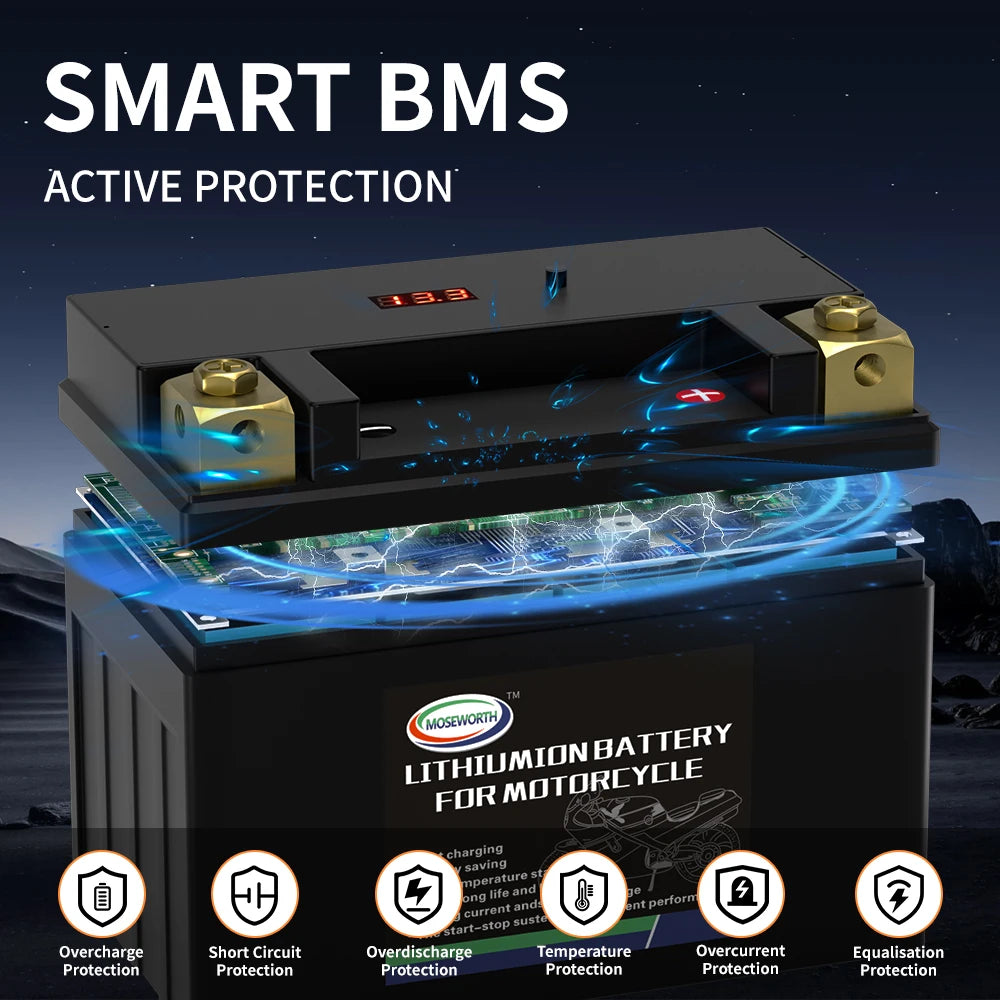

Voltage Protection Board: BMS Built-in
Nominal Capacity: 2~16AH
Nominal Voltage: 12V
CCA: 160~720
Charging Efficiency: 3C
Start Transient Voltage Fluctuation: 0.2~0.5V
Discharging Temperature: -25~80Centigrade
Extremely Low self-discharge: <3% for LIFEPO4 versus >20% for SLA Battery.
Long Service Life: Its cycle can reach as long as 2000 times which is 7-10 times of SLA (the SLA battery is 300-500 times only）.
Maintenance free: LifePo4 battery don't include any liquid then it is maintenance free.
Good performance, Lightweight: Weighs about 1/3 of same capacity SLA Battery.
Low Attenuation Rate: The attenuation rate of LifePo4 Battery is 5% per year, and SLA is 40% per year.
No Hazmat, Cleaner for the environment: Cleaner for the environment, No Hazmat, while LiCoO2 and SLA cause serious pollution to the environment.

Ideal for: motorcycle, lawn movers, snowmobiles, four-wheelers, electric scooters, lawn tractors, trailers, ATVs, UTVs, Can-Ams, jet skis, quad, Polaris, kayaks, go-karts, and PWC.



Will it fit my motorcycle?

Size, cold cranking amps, terminal location, and battery type are vital pieces to getting the right unit. please measure your old battery and compare the dimensions with this battery, if the measurements are the same, positive and negative poles are consistent, CCA is no big difference, and it will fit your vehicle.

Attention: Please check the rectifier is good or not before installation.
Motorcycle start lithium ion battery has the following advantages:
1) Light weight, startup for conventional lead-acid battery weight about a third of;
2) The green environmental protection, no sulfuric acid, heavy metals such as lead, cadmium and mercury pollution problem;
3) Do not need to add acid, completely free maintenance, no acid leakage problem, can be installed in any direction to use, safe and reliable;
4) High power, starting current is more than 40 c (lead-acid start ratio of 10 c);
5) Charging capacity is strong, can be large current fast charge, the fastest can charge the battery 10 c, 6 minutes can charge to 90% of capacity. Even after losing electricity, can fill in a short time.
6) Super long cycle life, can be greater than 2000 times (lead-acid battery is commonly 300);
7) Low self-discharge, long storage time and can be more than 1 year.
8) Stable discharge voltage, the engine work more stable and easier to start your motorcycle.

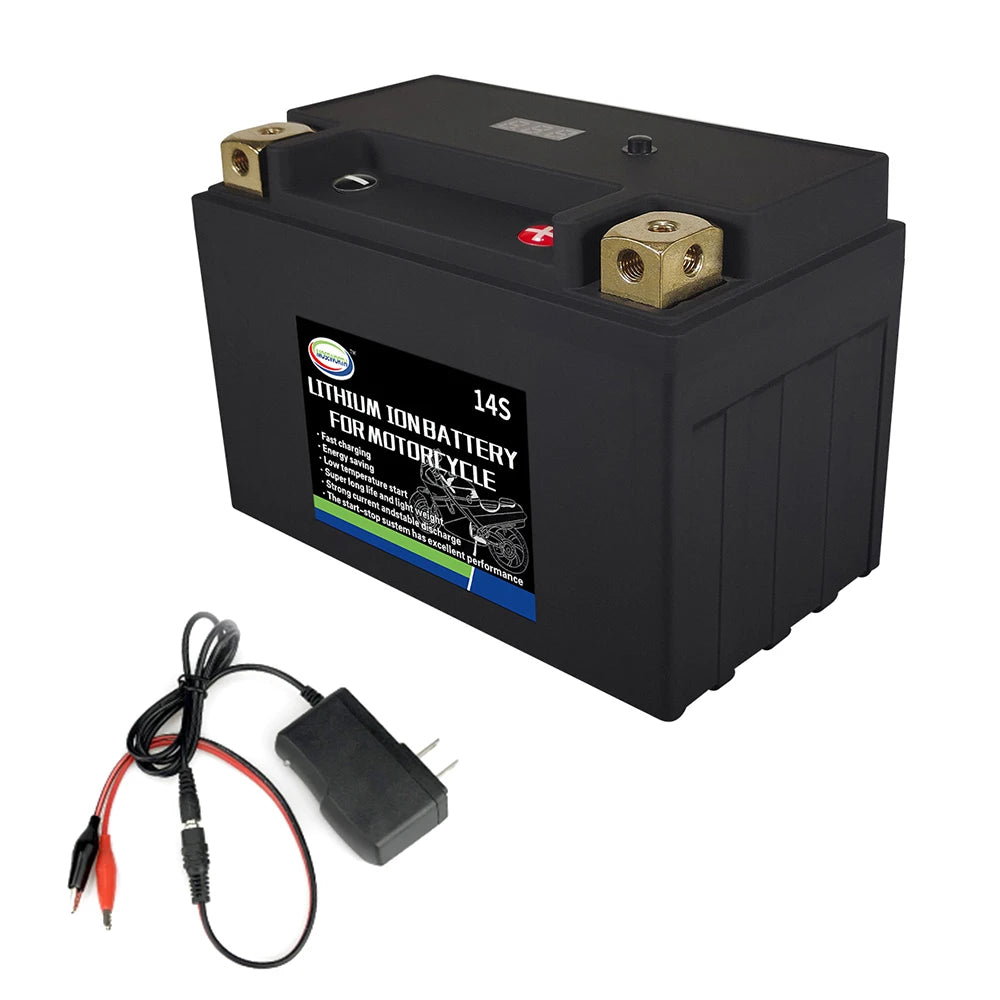

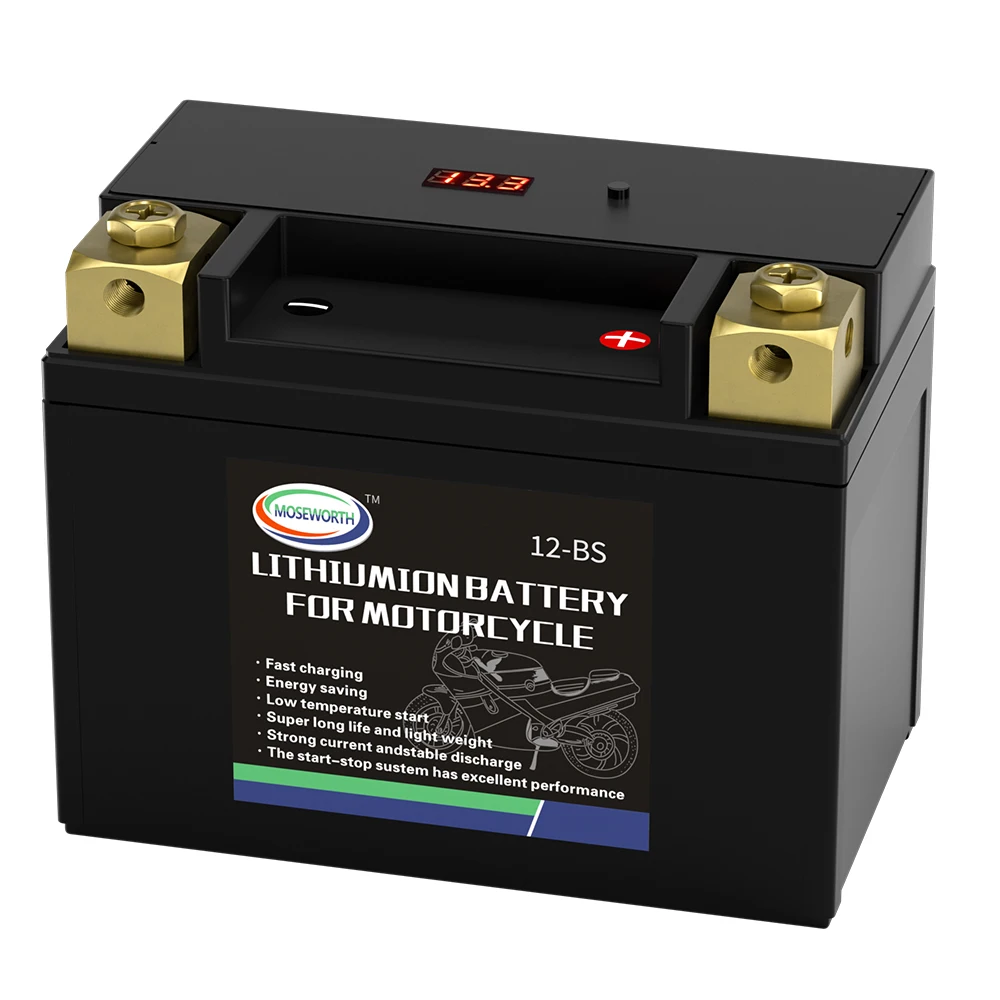

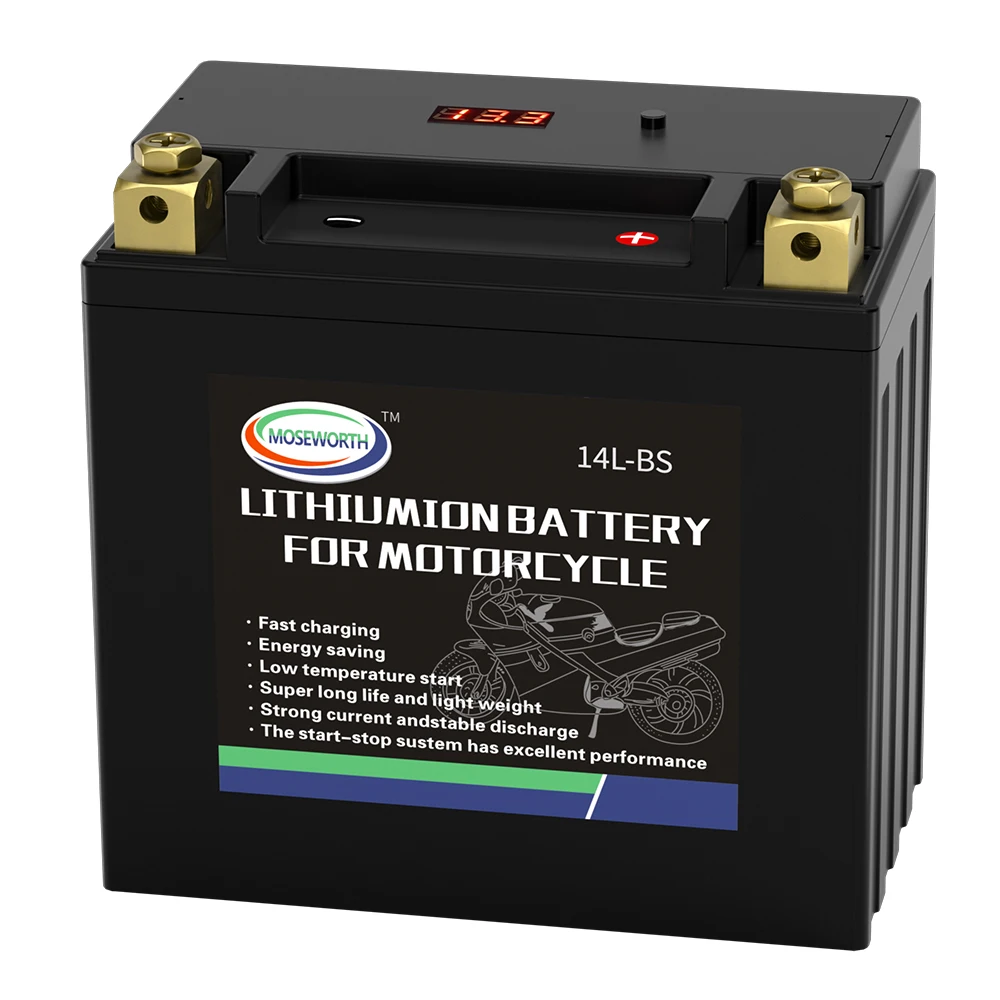

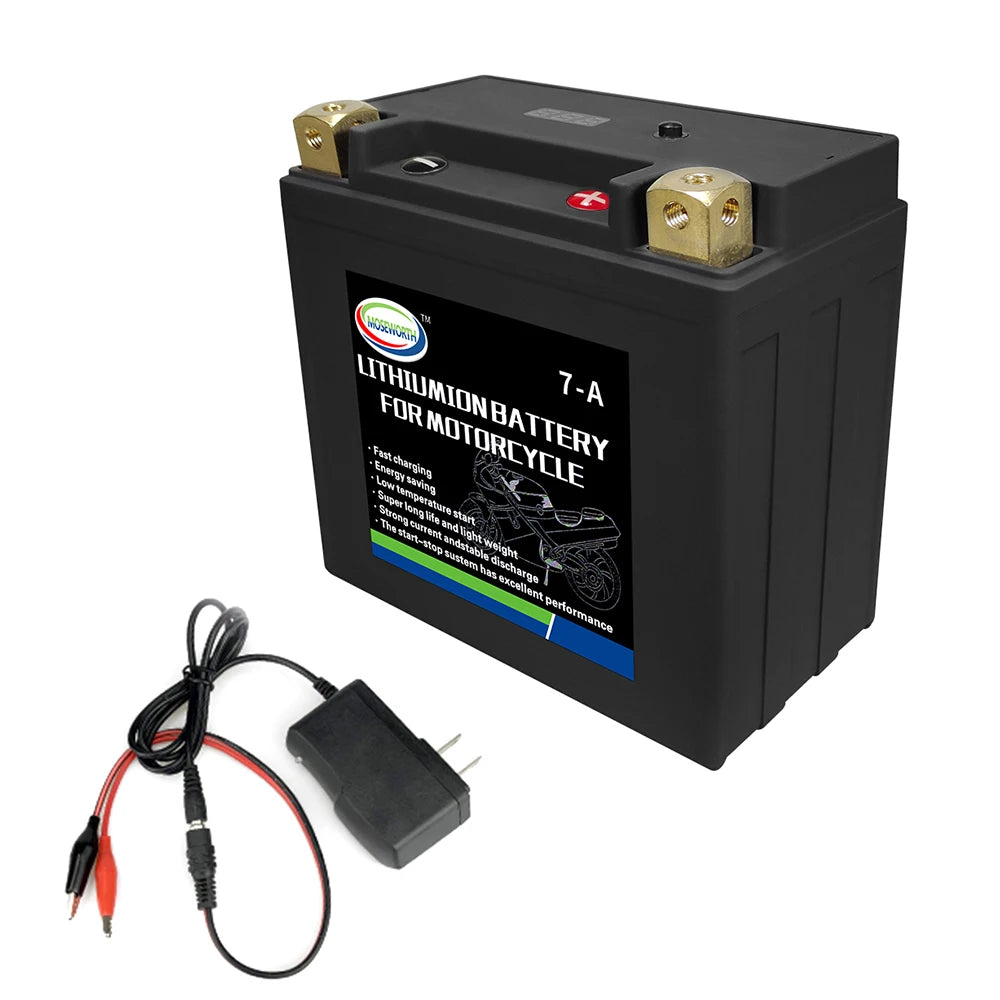

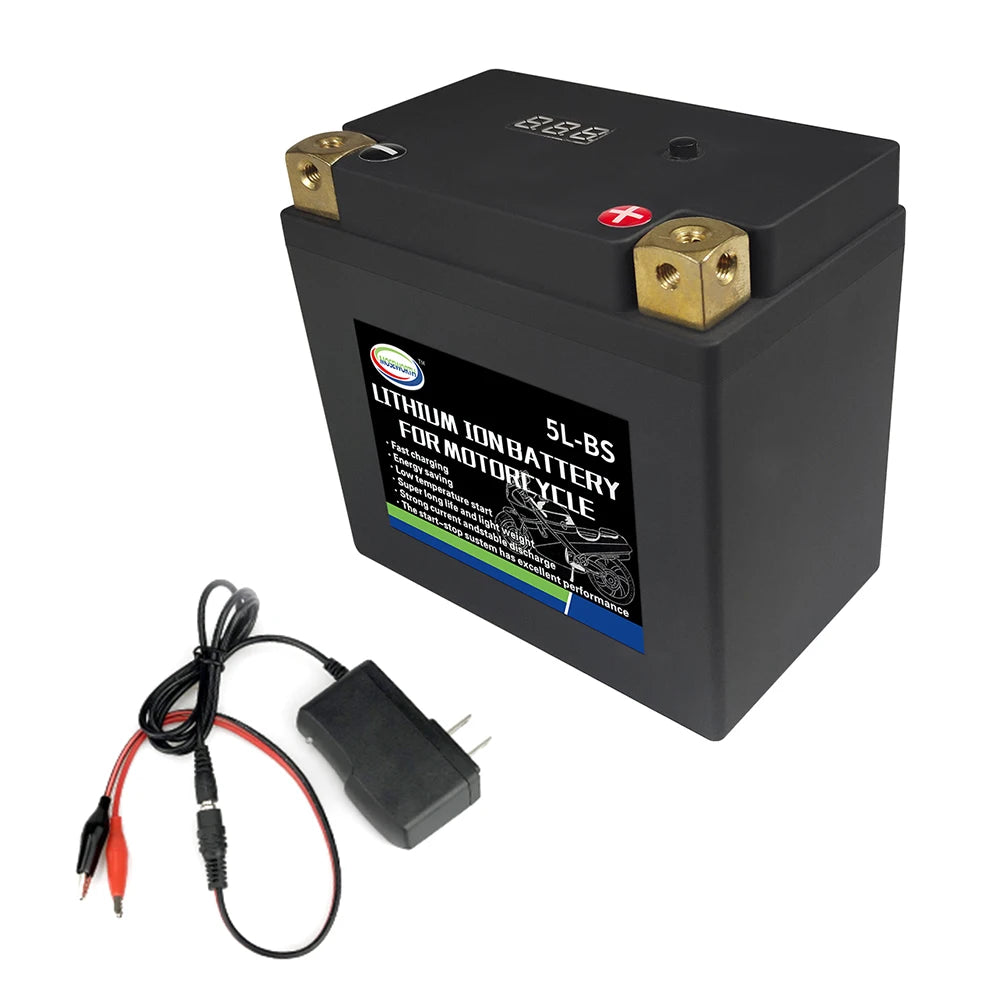

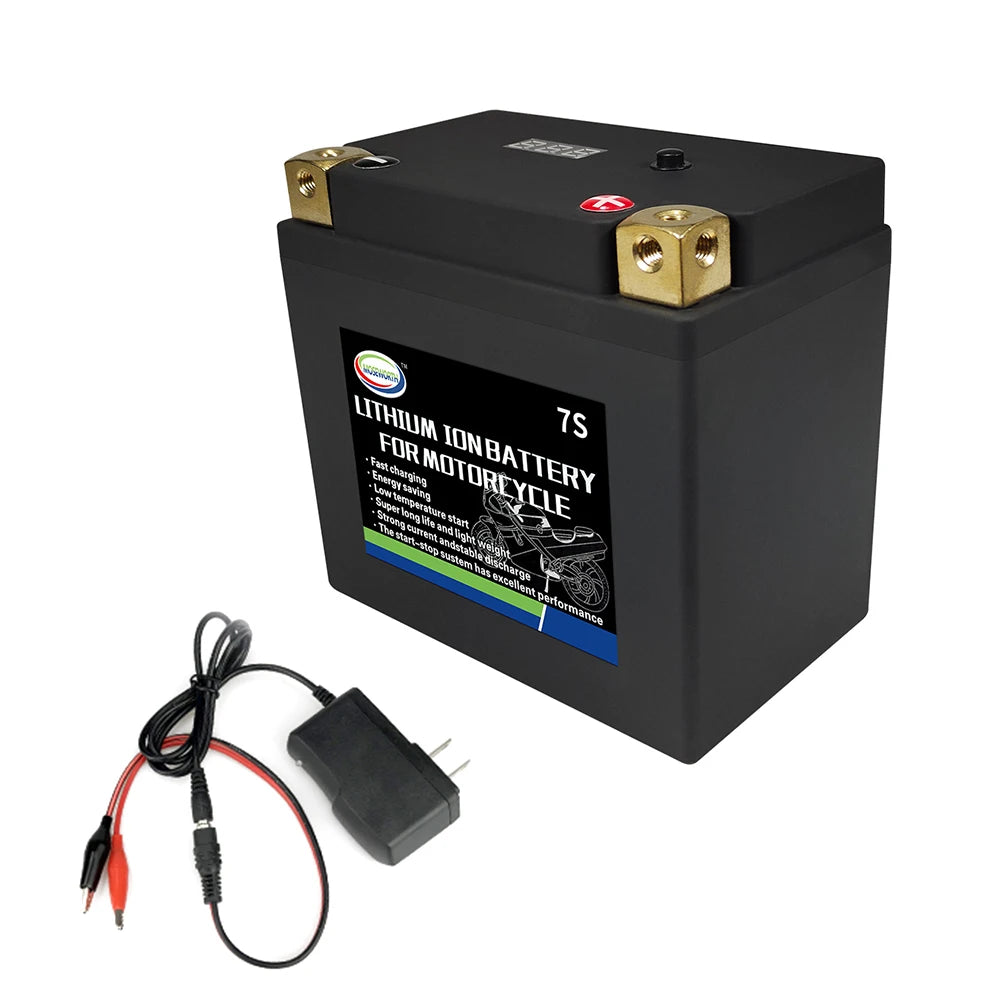

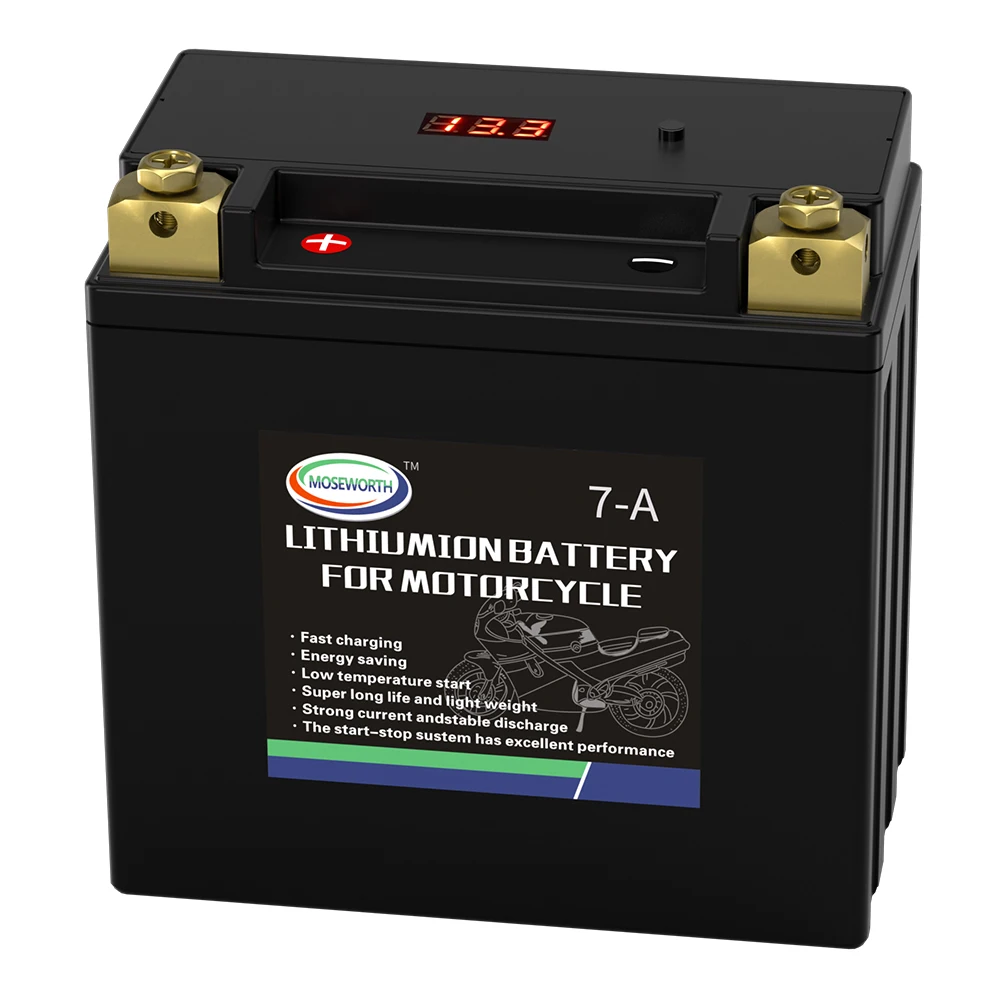

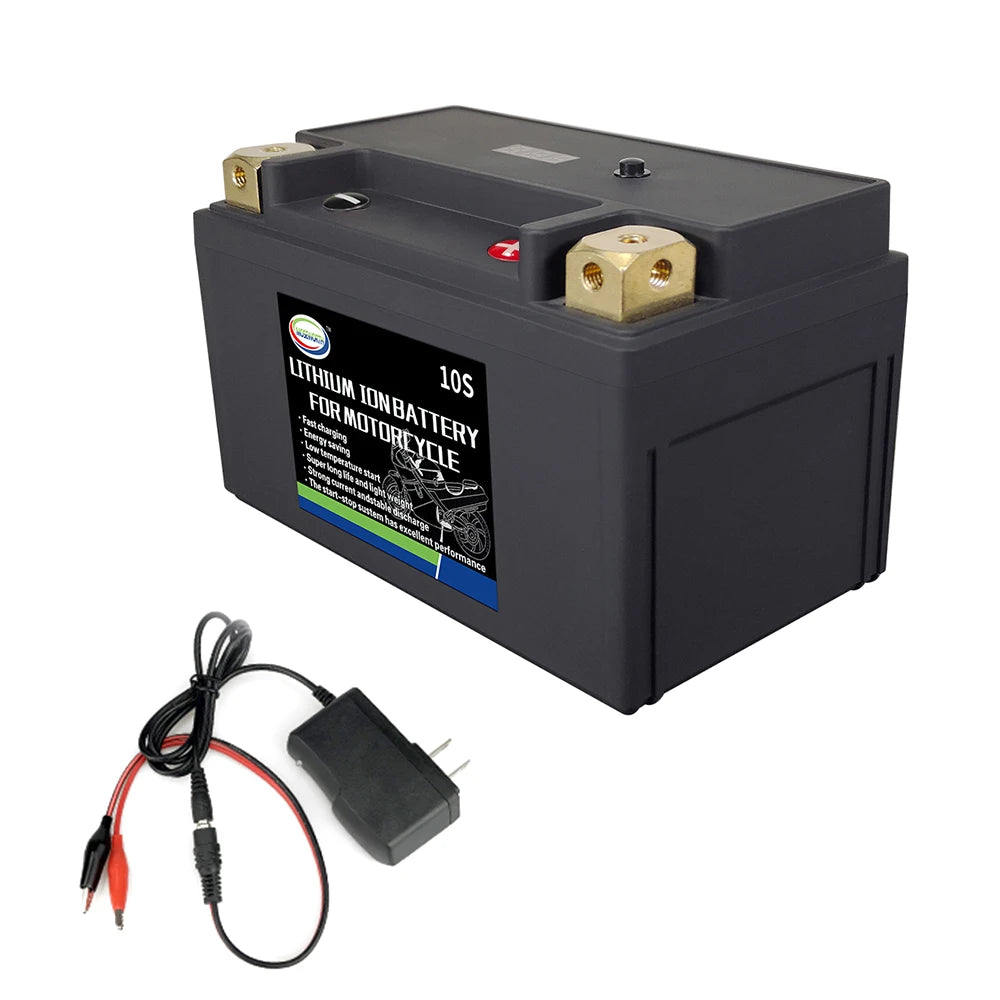

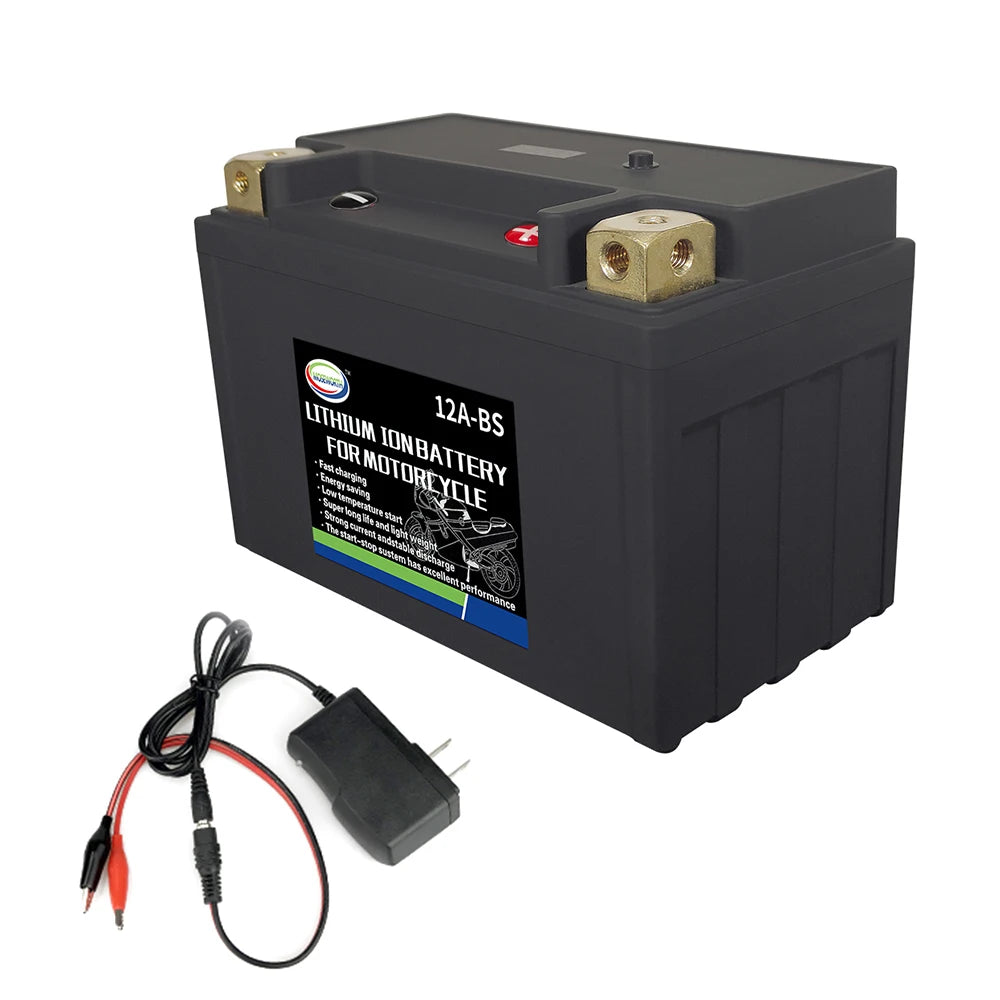

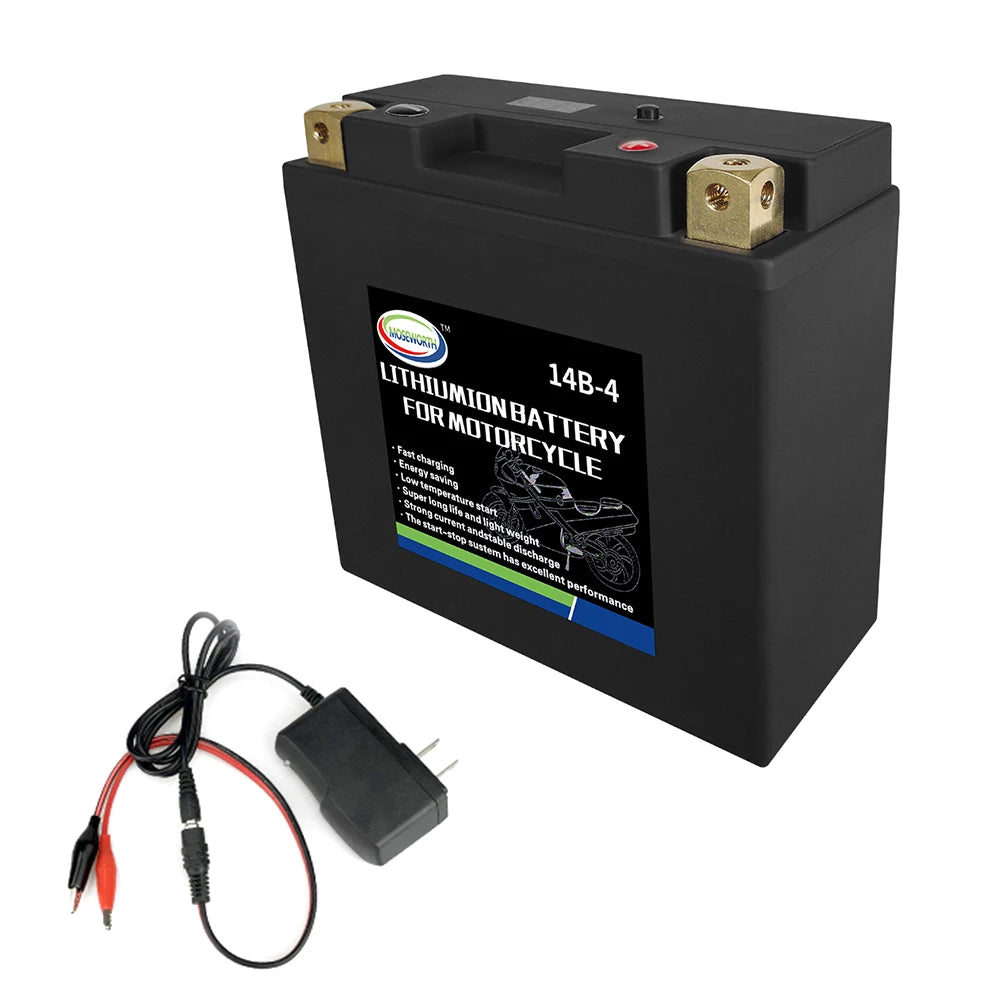

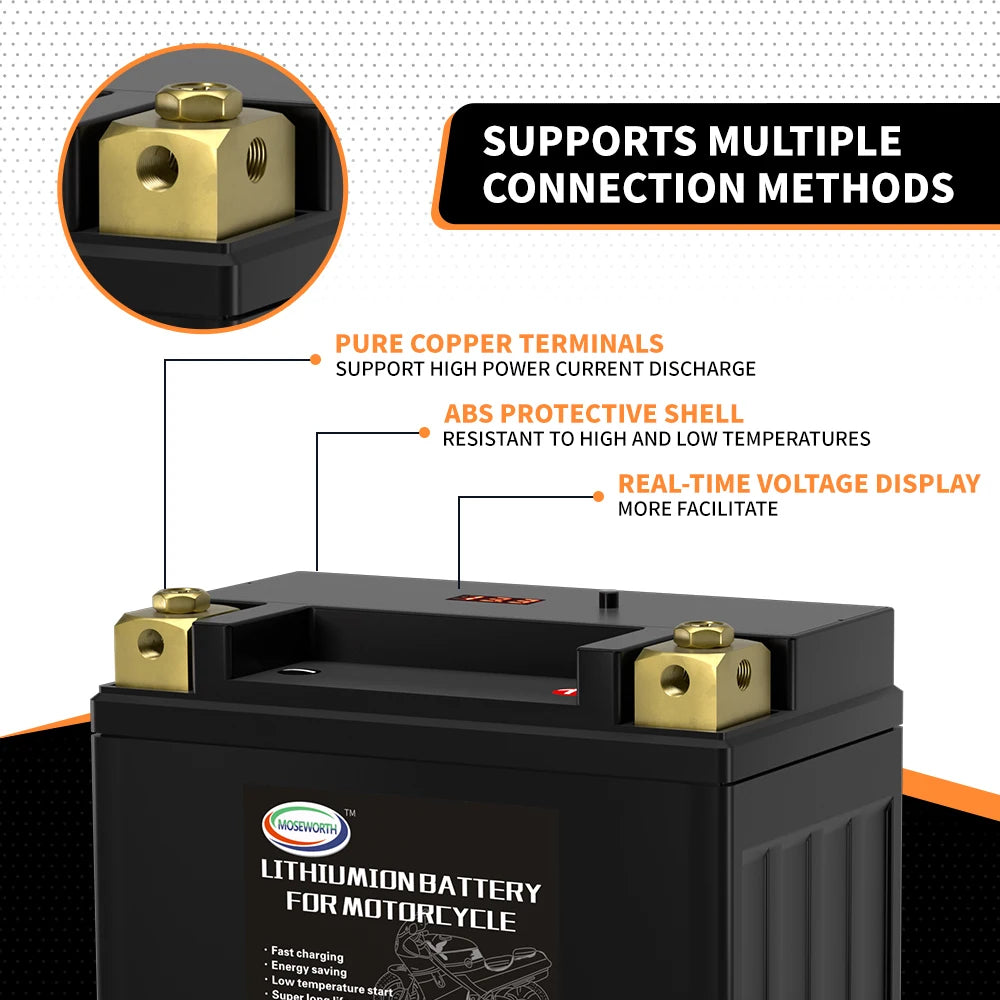

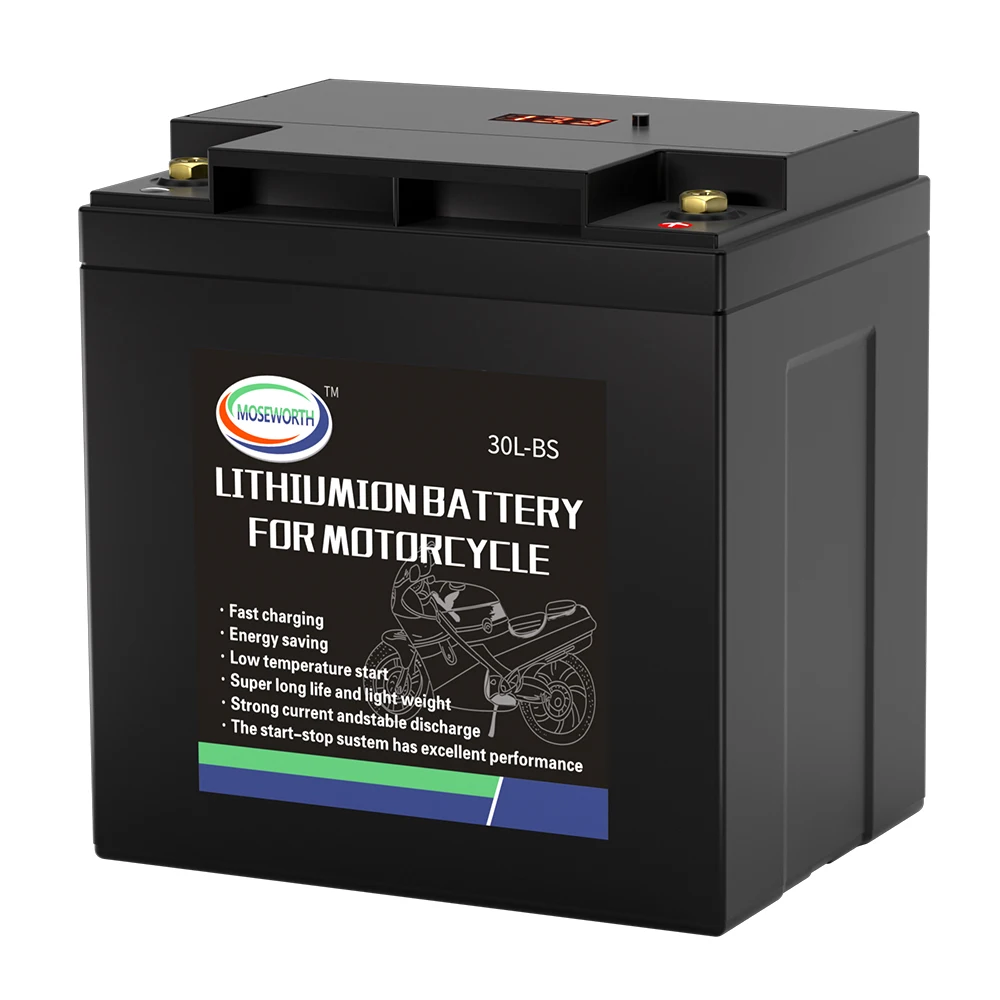

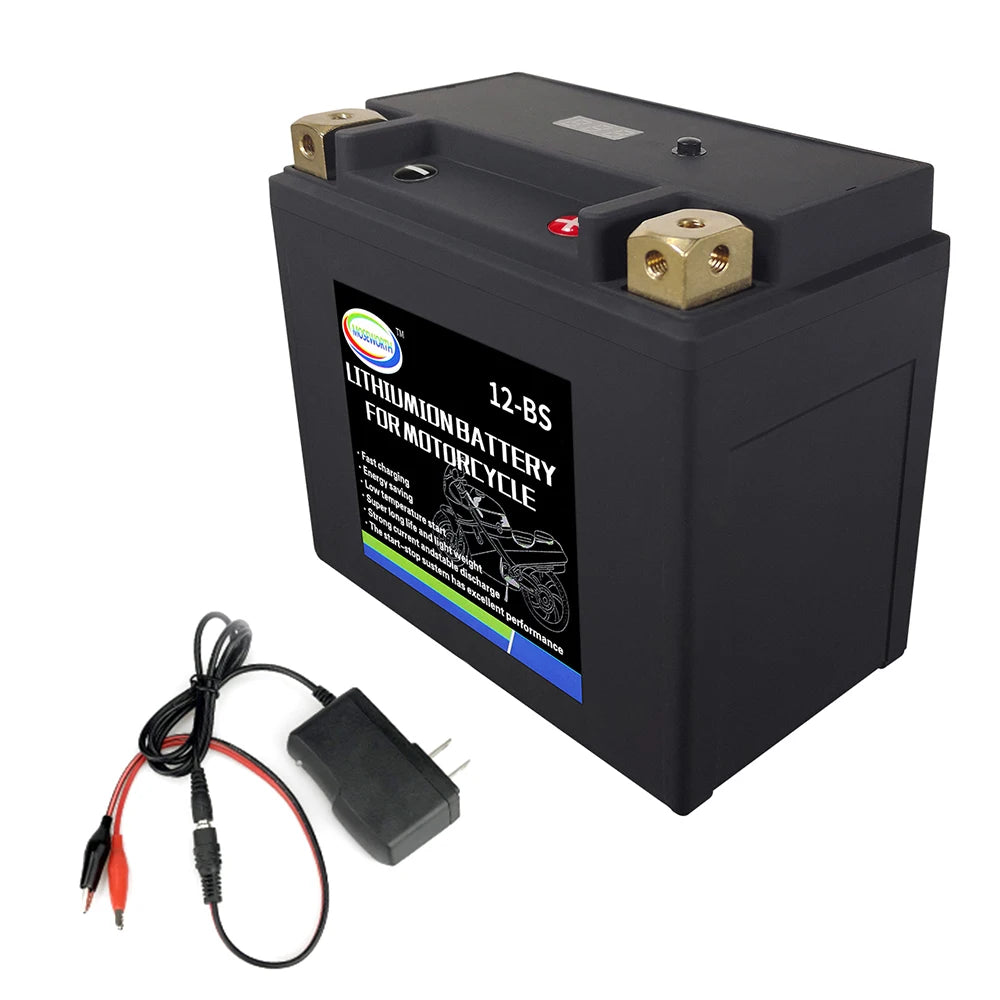

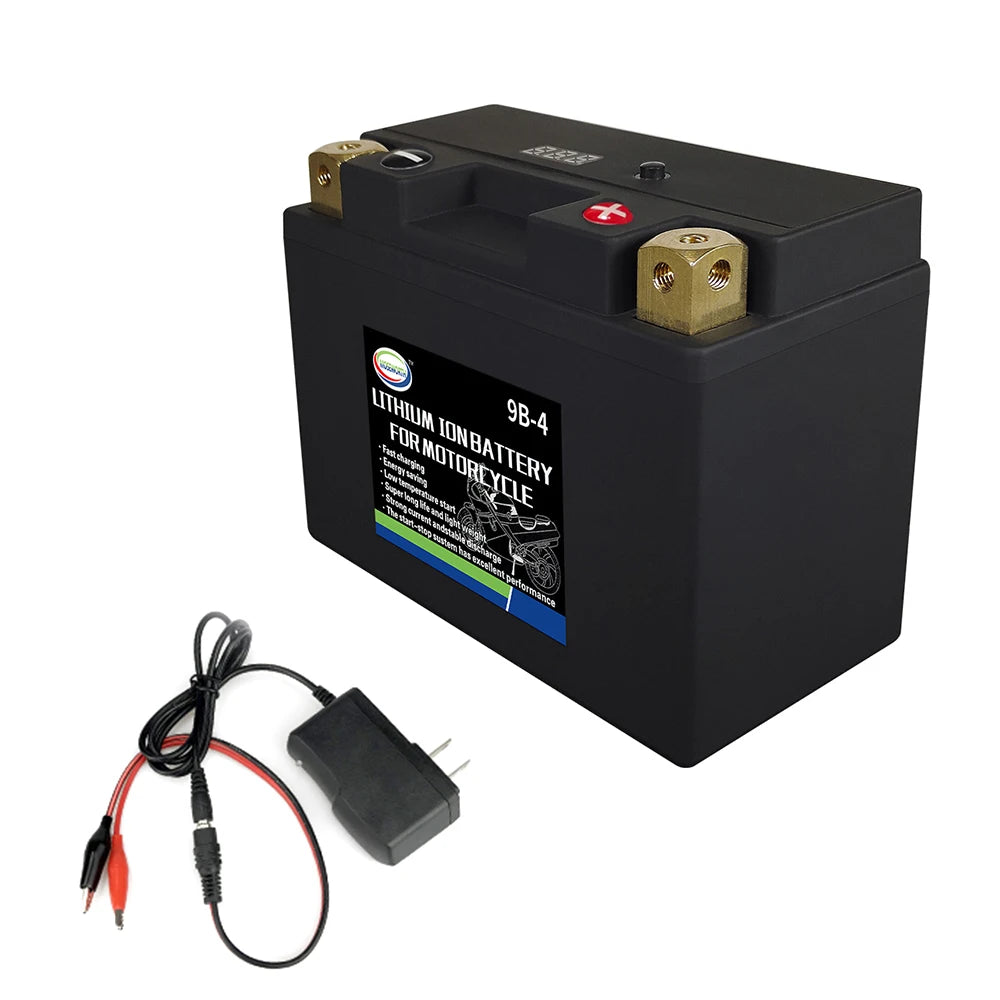

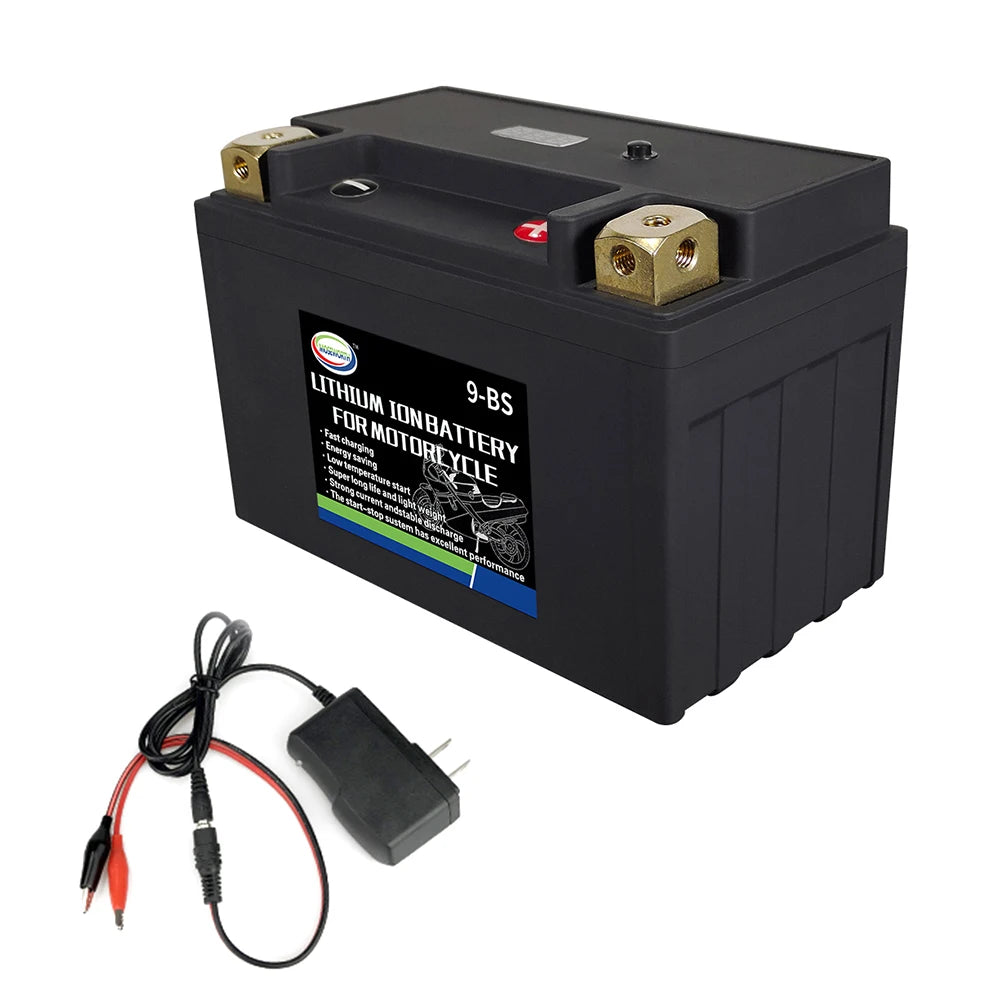

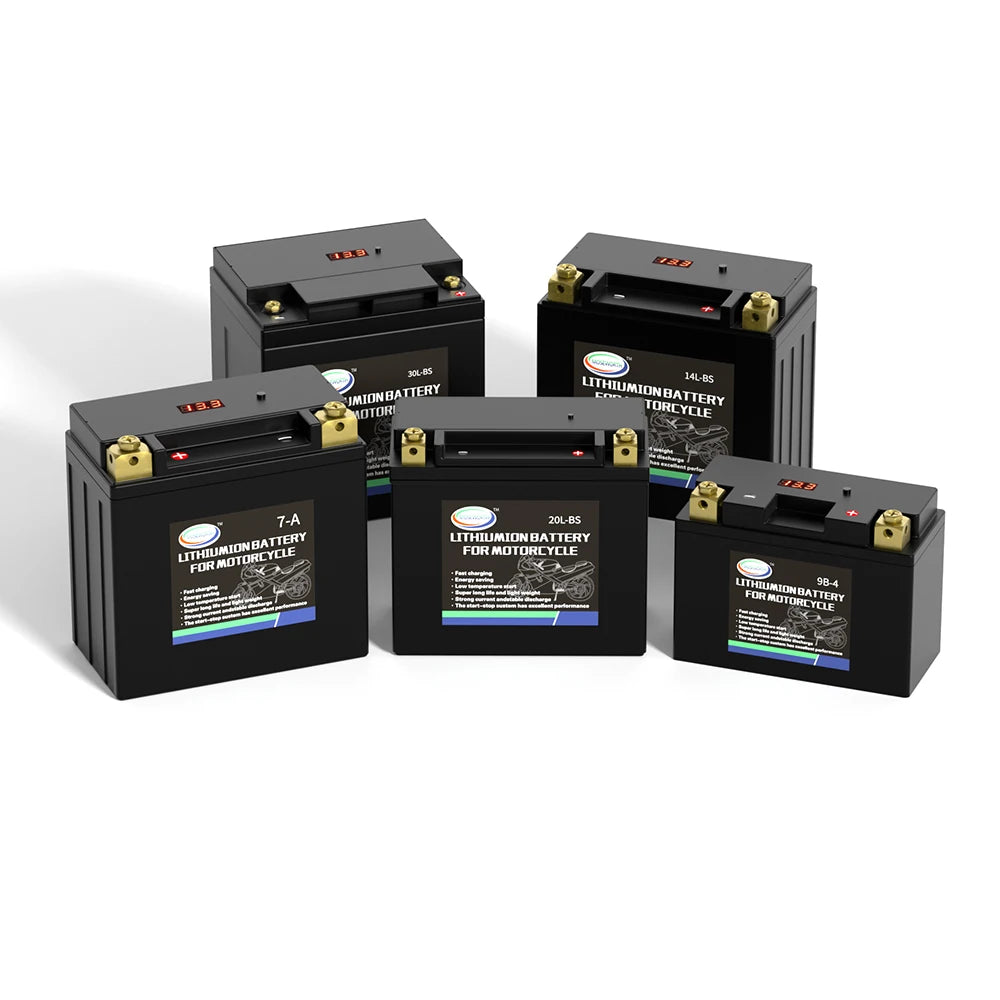

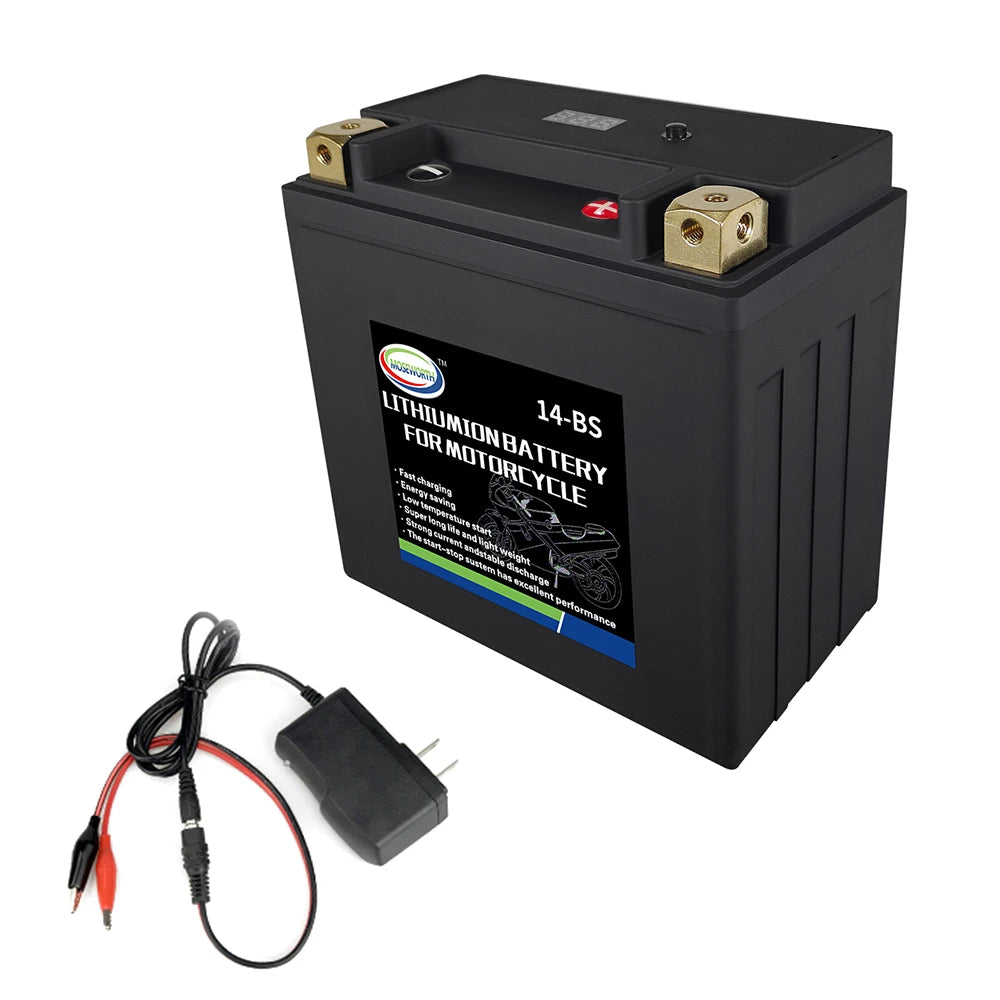

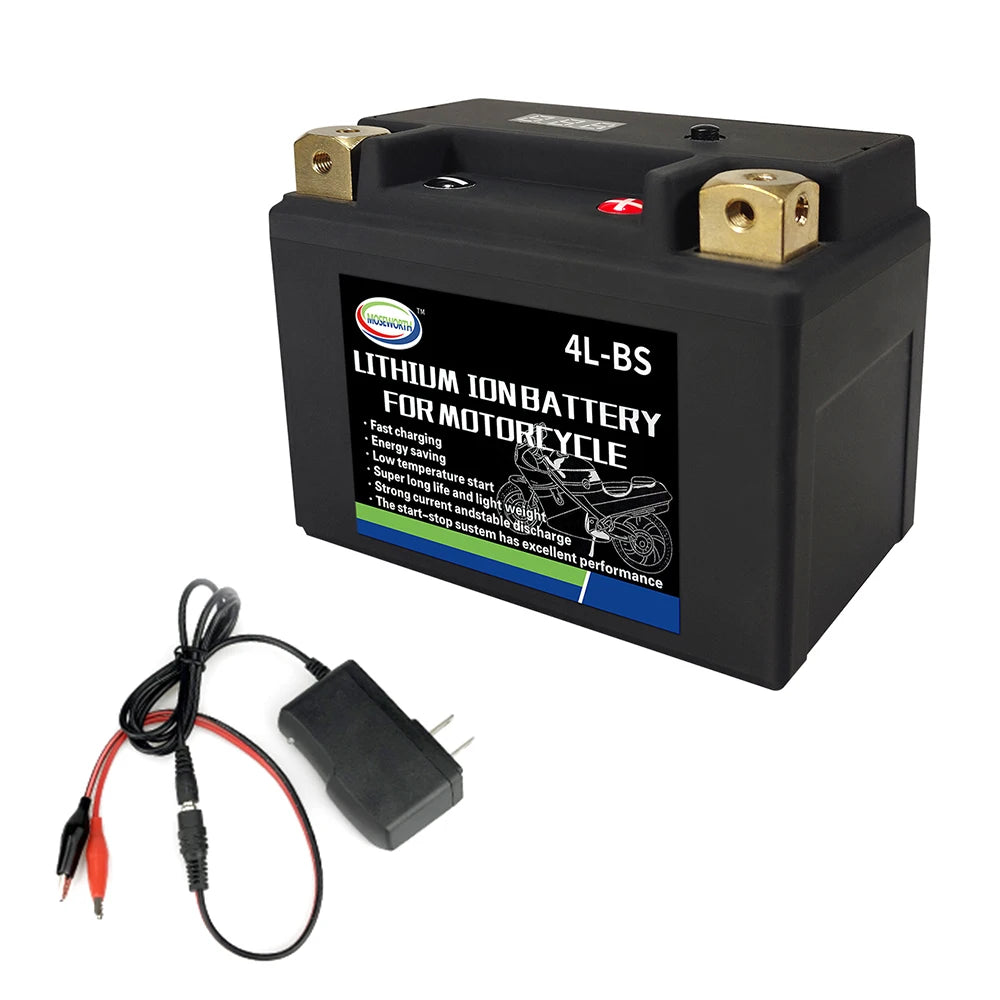

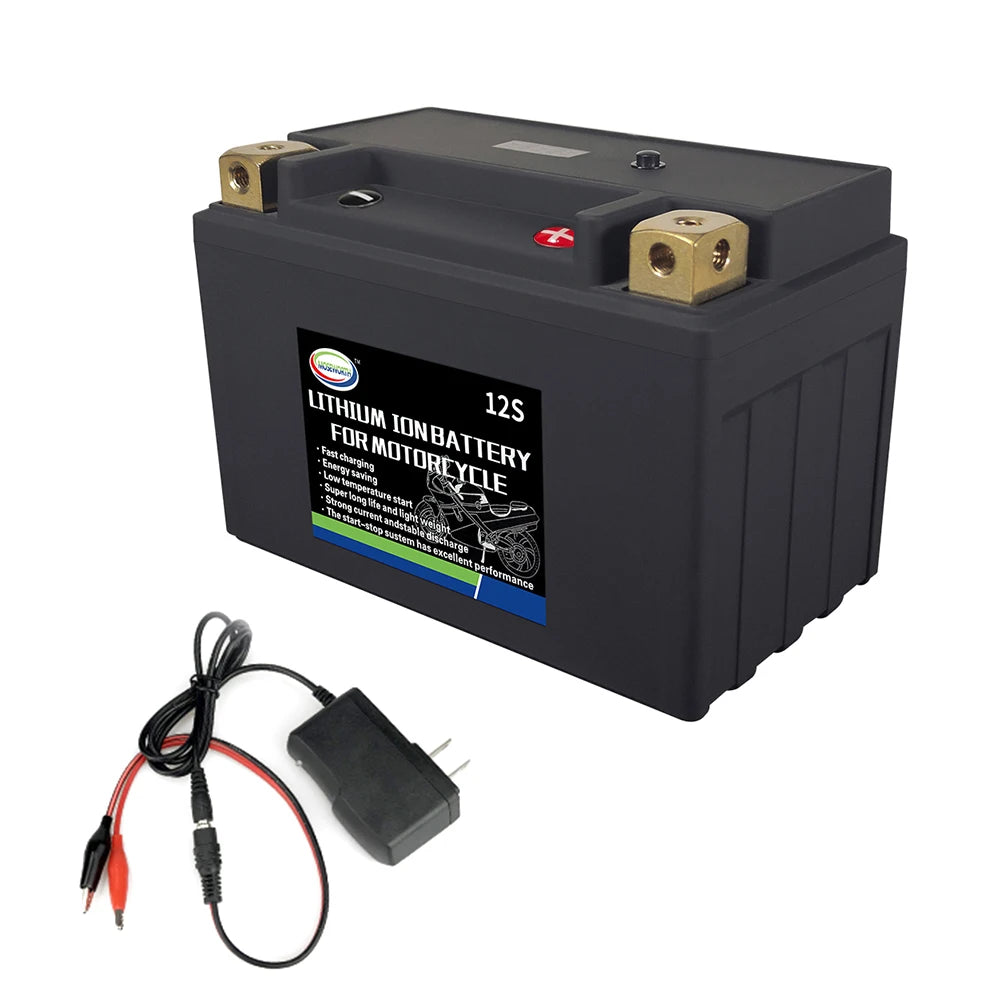

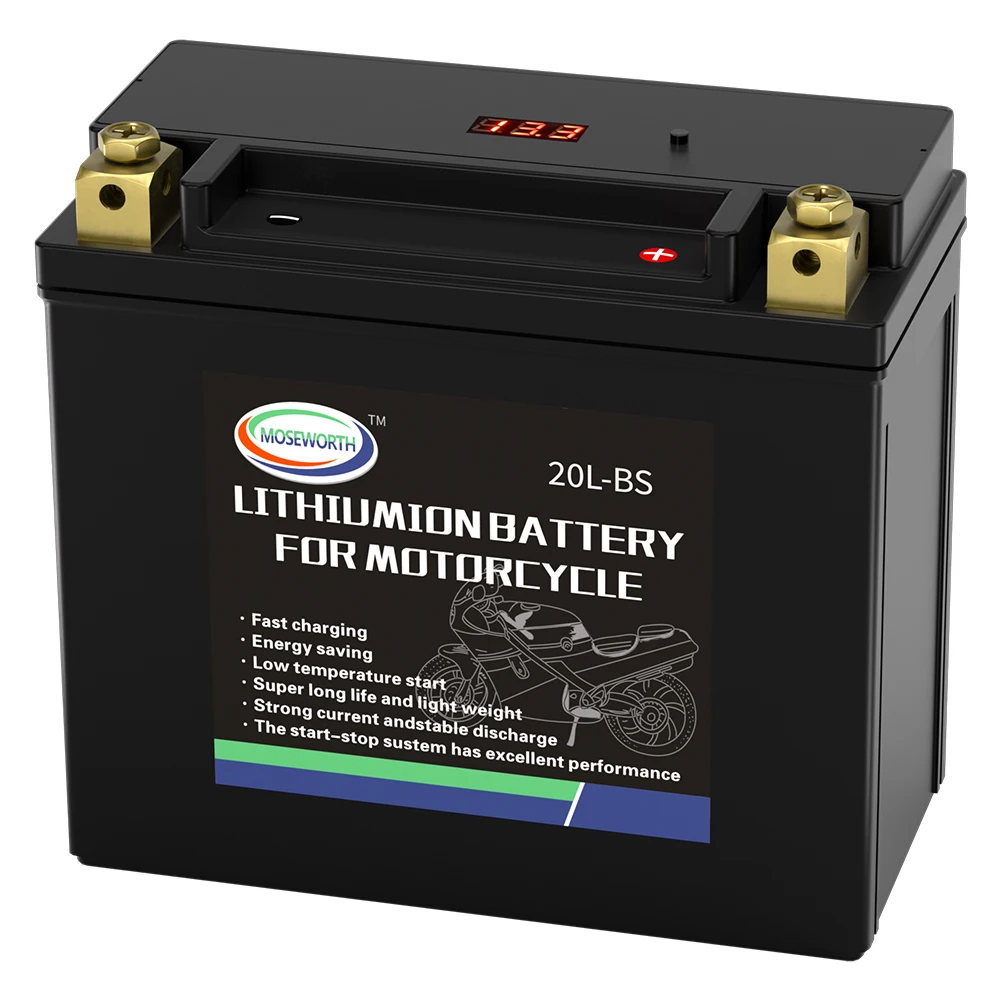

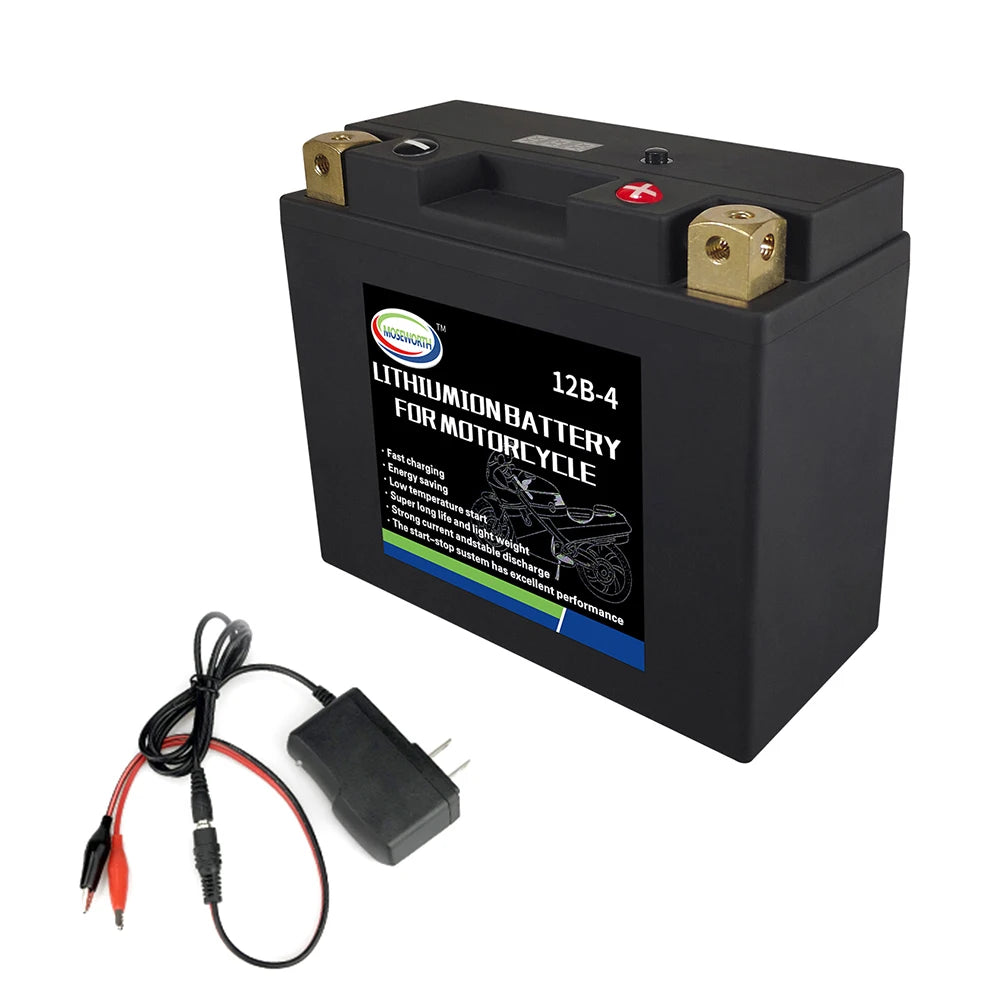

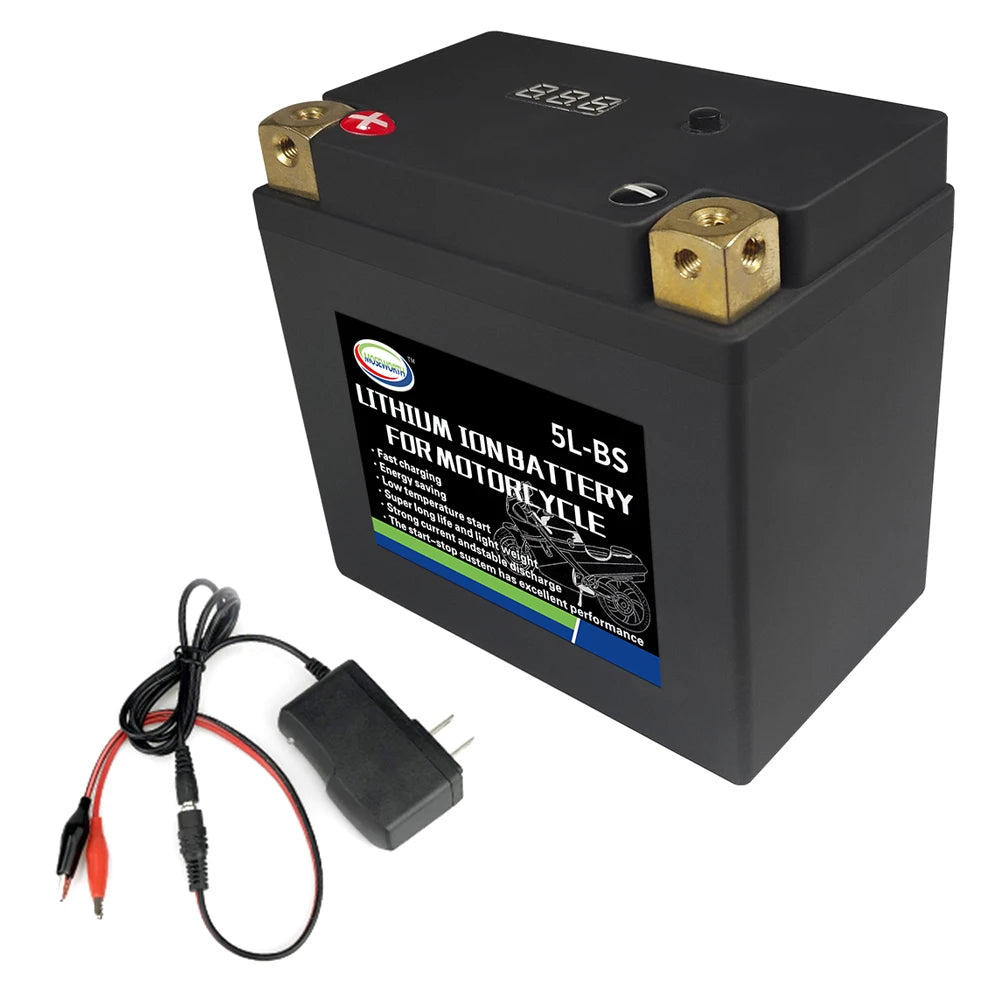

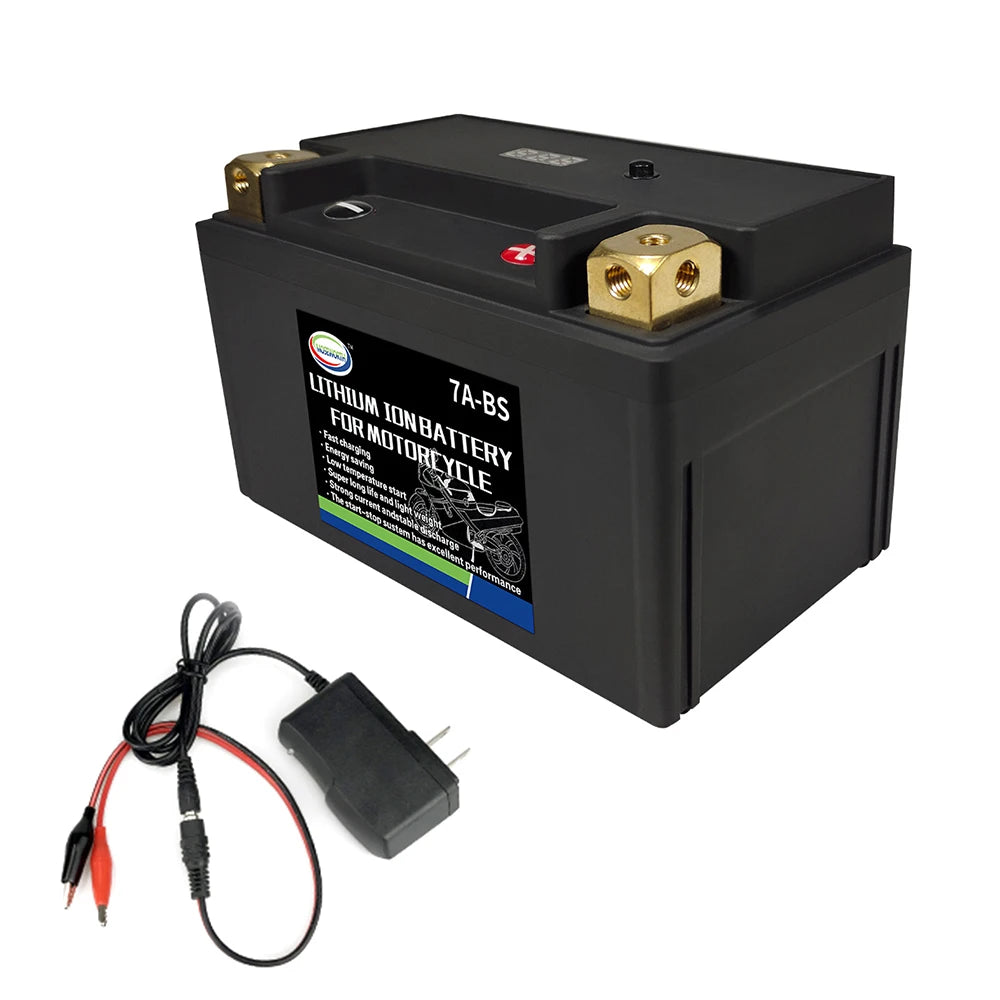

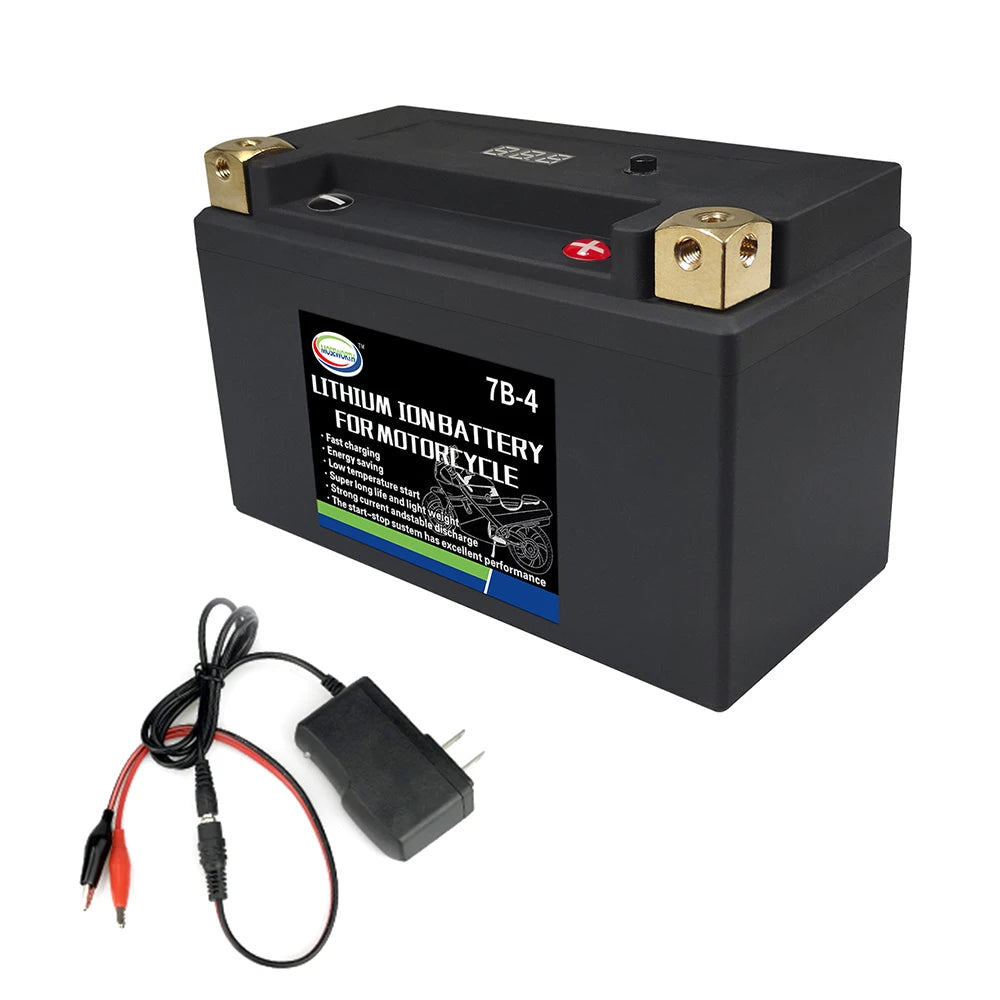

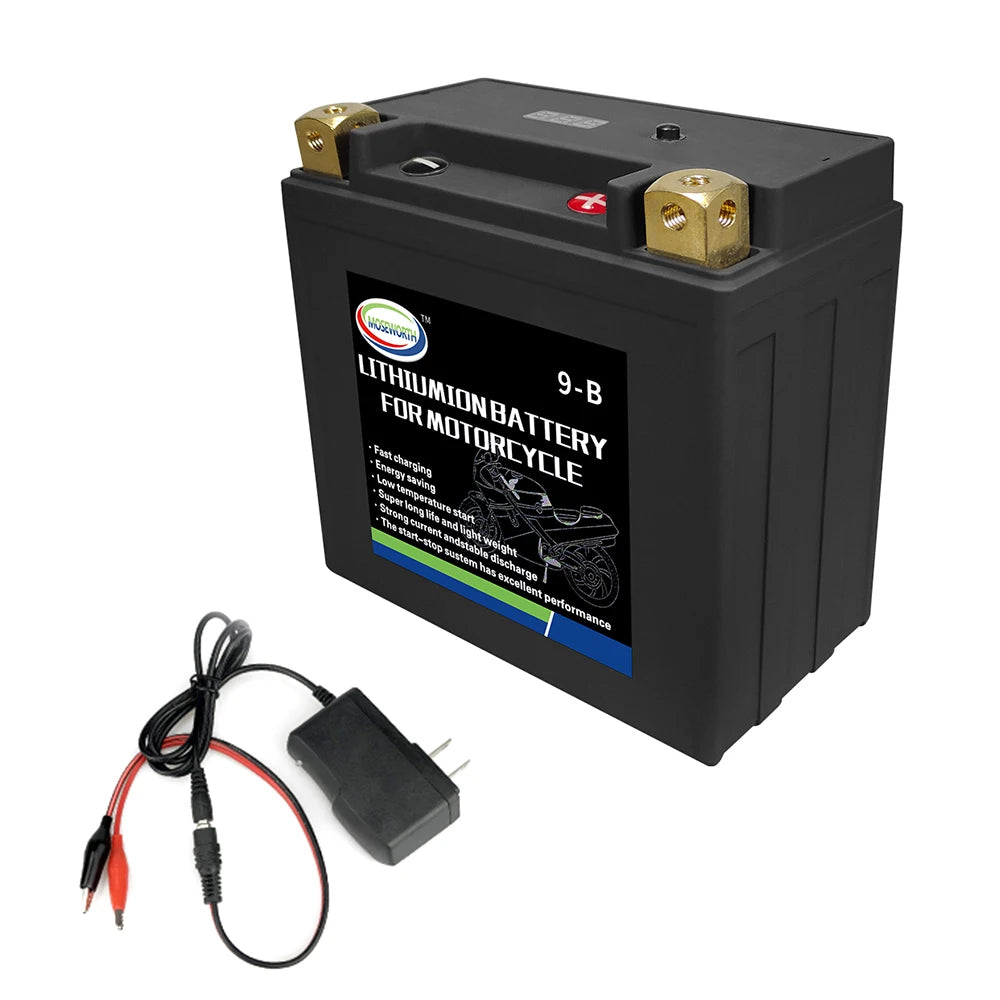

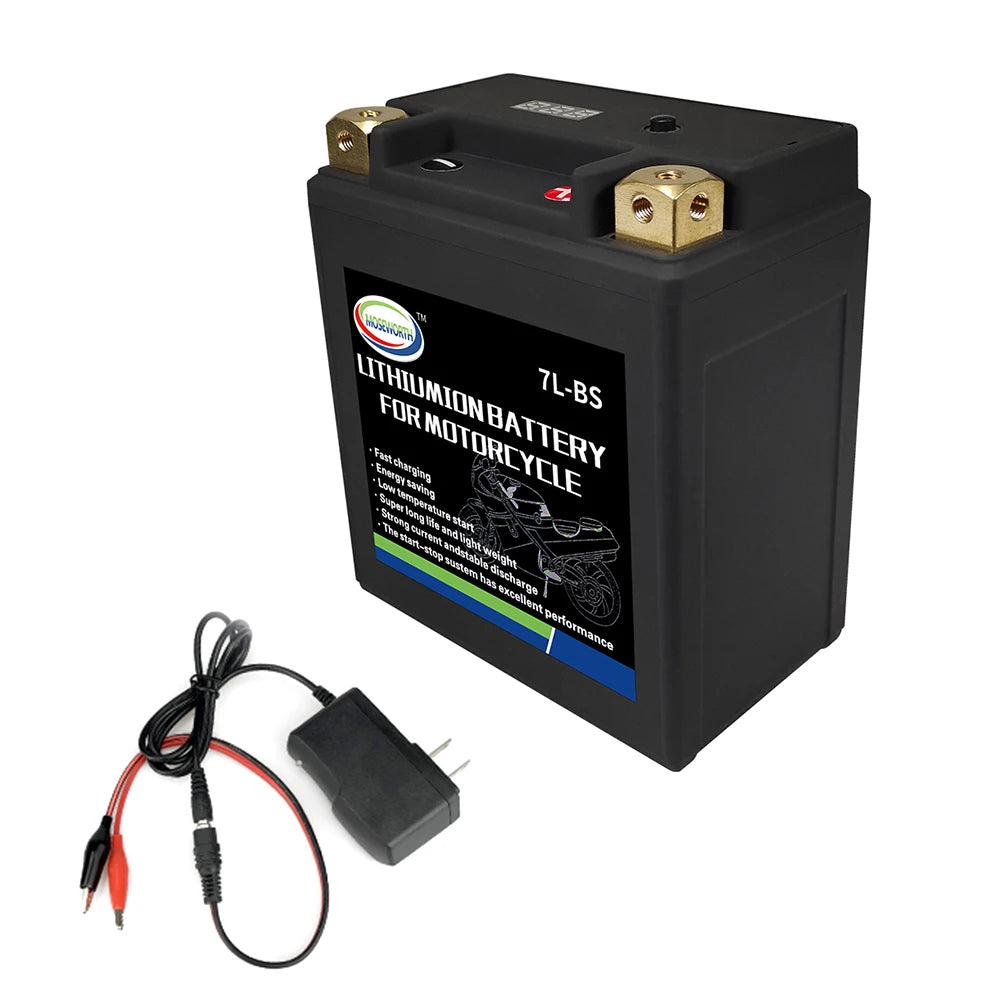

Product Picture

Everyone knows that lithium batteries can explode, but it's really difficult for you to explode lithium iron phosphate batteries. Here's some knowledge about lithium iron phosphate batteries.

What is LiFePO4 Battery?

The lithium iron phosphate (LiFePO4) battery, also called LFP battery (with "LFP" standing for "lithium ferrophosphate"), is a type of rechargeable battery, specifically a lithium-ion battery, which uses LiFePO4 as a cathode material. LiFePO4 batteries have somewhat lower energy density than the more common lithium cobalt oxide (LiCoO2) design found in consumer electronics, but offer longer lifetimes, better power density (the rate that energy can be drawn from them) and are inherently safer. LiFePO4 is finding a number of roles in vehicle use and backup power.

Purchase Notes

1. Please advise us what brand and model of your motorcycle, we will recommend suitable models for you.
2. Before installation and use, please ensure that all the electrical system of the motorcycle is normal (e.g. rectifier, magneto, and whether there is leakage of electricity ) and avoid the round-trip express fee caused by return of goods other than battery before quality problems.
3. Please check the positive and negative direction of original battery before purchasing, so as to avoid the situation that cannot be installed after purchasing.
4. Measurement standards of lead-acid battery and lifepo4 battery are different, can be regarded as number of liftpo4 divided by two, equivalent to the capacity of lead-acid battery.(for example,4.5AH for lifepo4 battery is equivalent to 9AH for lead-acid battery, but the starting current is the same as that for lead-acid 9AH).
5. If the motorcycle is equipped with other electrical appliances, the electricity consumption will be affected, especially the GPS and alarm, which will greatly affect the standby status of lithium battery.

Safety

One important advantage over other lithium-ion chemistries is thermal and chemical stability, which improves battery safety. LiFePO4 is an intrinsically safer cathode material than LiCoO2 and manganese spinel. The Fe–P–O bond is stronger than the Co–O bond, so that when abused, (short-circuited, overheated, etc.) the oxygen atoms are much harder to remove. This stabilization of the redox energies also helps fast ion migration. As lithium migrates out of the cathode in a LiCoO2 cell, the CoO2 undergoes non-linear expansion that affects the structural integrity of the cell. The fully lithiated and unlithiated states of LiFePO4 are structurally similar which means that LiFePO4 cells are more structurally stable than LiCoO2 cells. No lithium remains in the cathode of a fully charged LiFePO4 cell—in a LiCoO2 cell, approximately 50% remains in the cathode. LiFePO4 is highly resilient during oxygen loss, which typically results in an exothermic reaction in other lithium cells. As a result, lithium iron phosphate cells are much harder to ignite in the event of mishandling (especially during charge) although any fully charged battery can only dissipate overcharge energy as heat. Therefore, failure of the battery through misuse is still possible. It is commonly accepted that LiFePO4 battery does not decompose at high temperatures.[9] The difference between LFP and the LiPo battery cells commonly used in the aeromodelling hobby is particularly notable

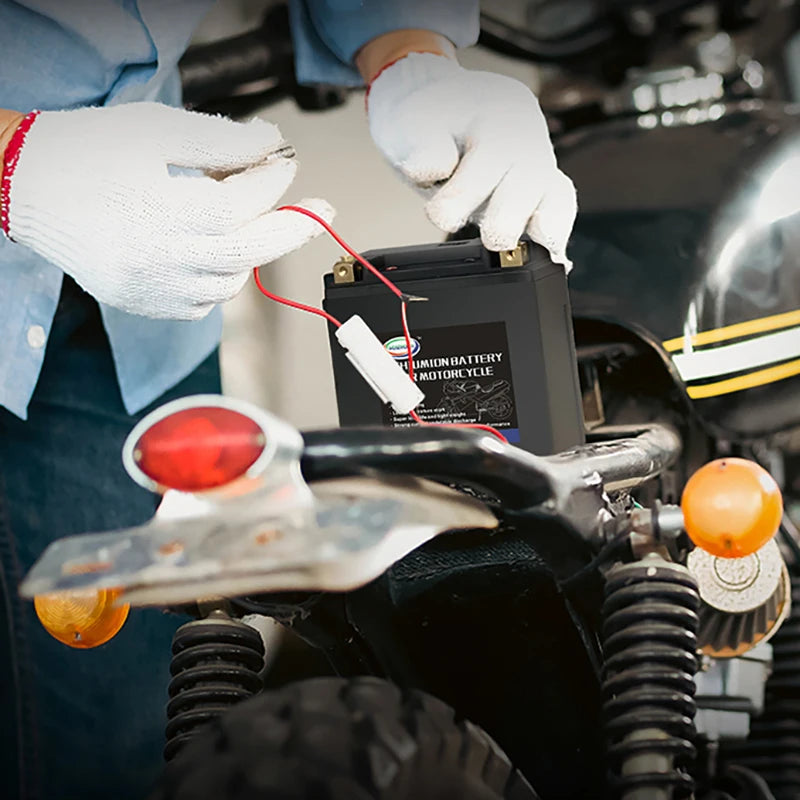

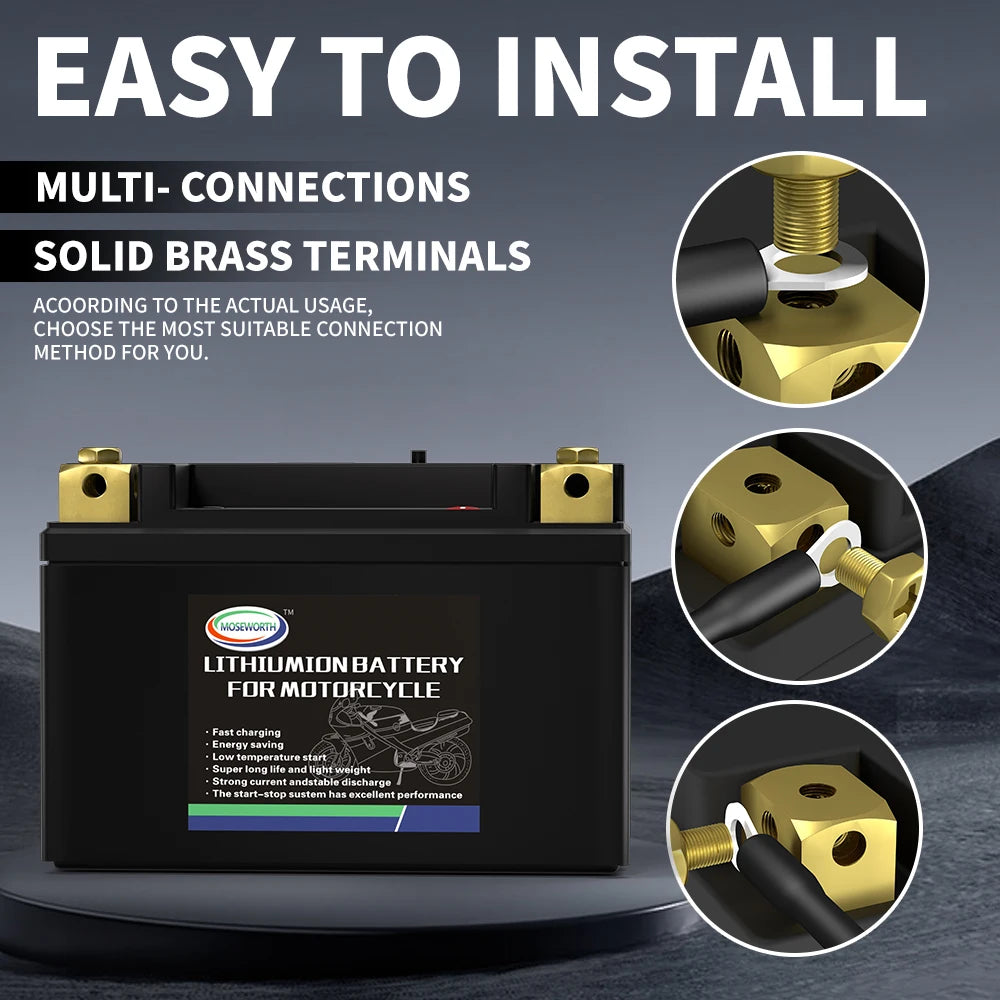

Installation Instructions

1. Routinely test whether the charging system of the locomotive is normal and whether the whole vehicle circuit has leakage.(be sure to check)
2. Remove the negative bolt and the wire first, and then remove the positive bolt and the wire, and remove the galvanic battery.(to avoid short circuit)
3. Compare the original battery and lithium battery, and check the space size of the two batteries.
4. Fill the space size with foam to create a space equivalent to the size of the original battery.
5. Cut off the excess foam to create a space equivalent to the size of the original battery.
6. Install the lithium battery and screw the terminal with the cross screw(NO.3 screwdriver is recommended)
Remarks:1.Please consult us to choose motorcycle/locomotive/generator for lithium iron battery.
2.Due to the limited space of the motorcycle battery compartment, please be sure to confirm whether the size is appropriate.
3.Please refer to “suitable model”. please be sure not to use the car in excess of displacement and overload, so as to avoid damage to your car.
4.When installing, please pay attention to the safety of electricity, consumption.
It is not allowed to connect the negative polarity to the negative polarity, and it is not allowed to cause short circuit of the electrode.

About after-sale service

(Friendly reminder: the following situations are non-refundable and non-exchangeable)
1.After purchasing, the product is removed or damaged by buyer.
2.Problems with the electrical system of the locomotive, or improper charger for the lithium battery, cause high charging voltage or damage of the lithium battery.
3.The actual starting current of locomotive is higher than the CAA index of lithium battery, which causes battery damage.
4.Battery positive and negative short circuit, positive and negative polarity, or other conductive objects contact the battery positive and negative, resulting in battery damage.
5.Locomotive circuit leakage or not the original vehicle configuration of electrical appliances caused by excessive discharge damage, resulting in battery damage.
6.The warranty of our lifepo4 batteries are two years.
